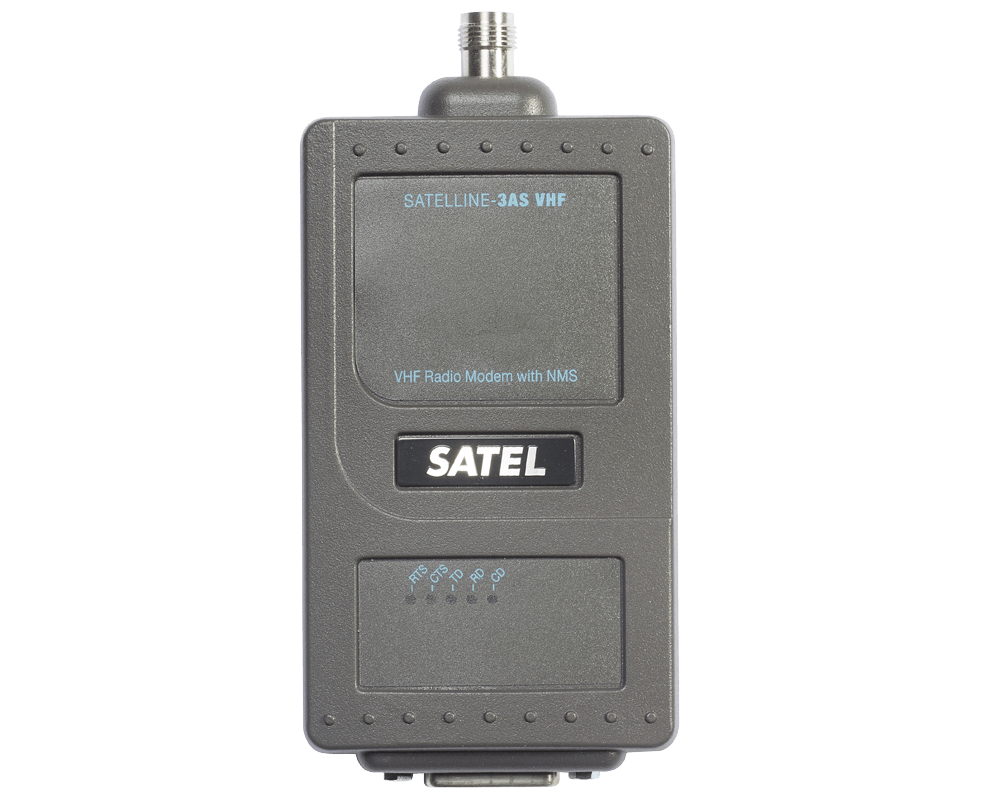

SATELLINE-3AS VHF
Radio modem for VHF frequencies with advanced Network Management functions
Configurations
Benefit from the SATEL NMS
SATEL offers a wide range of accessories for the products, see here.
- Enhanced reliability through advance indication of anticipated faults and failures
- Reduced configuration and maintenance costs through remote configuration
- Flexibility in adapting to customer protocols and applications
- SATELLINE-3AS VHF (YM5000) without display and cooling part
- SATELLINE-3ASd VHF (YM5010) with display, but without cooling part
- SATELLINE-3AS VHF C (YM5020) without display, but with cooling part
- SATELLINE-3ASd VHF C (YM5030) with display and cooling part
Specifications
| Frequency range | 135 … 174 MHz |
| Tuning range | 135 … 155, 138 … 160 MHz | 155 … 174 MHz |
| Channel spacing | 12.5 / 25 kHz fixed |
| Sensitivity/Carrier power | -115 dBm / 5 W |
| Interface | RS-232, 422, 485 |
| Data speed | Radio 19200 / RS 38400 bps |
| Operating voltage range | +10.6 … +25 Vdc (-15% / +20%) |
| Power consumption | RX 1.7 W / TX 6.6 W @ 1 W, 22 W @ 5 W |
| Size/Weight | 137 x 67 x 29 mm / 265 g | 137 x 80 x 56 mm / 550 g |
| Connectors | D15 / TNC female |
| CRS-2M (YC0103) / CRS-2F (YC0104) | Interface cable, length 2 meter, includes power supply wires, with D15 / D9 male OR CRS-2F female -connectors |
| CRS-9M (YC0203) | Interface cable, length 2 meters, with D9 male / D9 male connectors |
| CRS-PB (YC0501) | Profibus interface cable, length 2 meter, includes power supply wires, with D15 / D9 male -connectors for RS-485 interface |
| CRS-TSU (YC0271) | Length 2 meters or 50 cm, with D15 male / D15 female connectors, to be used between radio modem and I-LINK 100 |
| CRS-NMS (YC0302) | Length 1.5 meters, with D15 male / 2 x D9 female connectors from Master modem to user system and NMS PC, including power supply wires |
| CRF-1 (YC1101) | RG58, lenght 1 meter with TNC male / TNC female -connectors |
| CRF-50 (YC1150) | Length 50 cm with TNC male / TNC male from band-pass filter to radio |
| ECOFLEX10 (YC1004) | Low loss (0.9 dB / 10 m) cable for cable lengths upto 20 meter with N or TNC -connectors |
| ECOFLEX15 (YC1005) | Low loss (0.6 dB / 10 m) cable for cable lengths over 20 meter with N -connectors |
| NARS-1F-4A (YC0204) | Interface adapter with D15 male / D9 female –connectors, 4 A fuse. Including power supply wires and programming switch |
| NARS-2 (YC0485) | Interface adapter with D15 male / screw connectors, 650 mA fuse adapter for RS-422 / 485 interface |
| Antennas | Directional and Omnidirectional Antennas |
| Power supply DIN (YP7524) | Power supply for DIN-rail, Input 100–240 Vac / Output 24 Vdc / 2.5 A |
| A-AC (YP0115) | Power supply for tabletop or wall mount usage. Input 100–240 Vac / Output 15 Vdc / 4.6 A |
