SATEL-TR4+
SATEL-TR4+ is supplied without a housing in PCB format with RF-shielding, facilitating installation into the customer’s own housing or into a host device. The radio module configuration can be done with the SATEL SL-commands or SATEL Configuration Manager software.
SATEL-TR4+ is compatible with widely used SATEL radios, such as SATELLINE-M3-TR4, -EASy, -Easy Pro and SATEL-EASy+, and also with other manufacturers’ radio protocols. SATEL GO radio modules match all the needs of OEM customers. Please contact us or our nearest distributor for various possibilities to create a customized solution for you. Available radio module models and product codes:
- SATEL-TR4+ with AES128 encryption support (YM7470)
- SATEL-TR4+ without AES128 encryption support (YM7475)
- SATEL-TR4+ with AES128 encryption support, DTE connector at TOP (YM7480)
- SATEL-TR4+ without AES128 encryption support, DTE connector at TOP (YM7485)
- SATEL-TR4+ OA complies with the requirements of the Dutch KAR (Korte Afstand Radio) specification for Public Transportation data communications (YM7440)

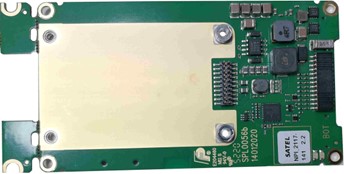

For easy assembly SATEL offers motherboards, SATEL-B2, which can be ordered separately. Three variants: horizontal 26-pin header connector, vertical 26-pin header connector or horizontal 26-pin header connector with D15 adapter. Radio module is assembled with four screws on the mother board. Following HIROSE U.FL compatible antenna connector options are available: TNC, BNC, SMA, MCX and MMCX (in the picture is TNC). Available motherboard packages and product codes:
- SATEL-B2-TR4+, MP1 with AES128 encryption support, horizontal 26-pin connector (YR7470)
- SATEL-B2-TR4+, MP1 without encryption support, horizontal 26-pin connector (YR7475)

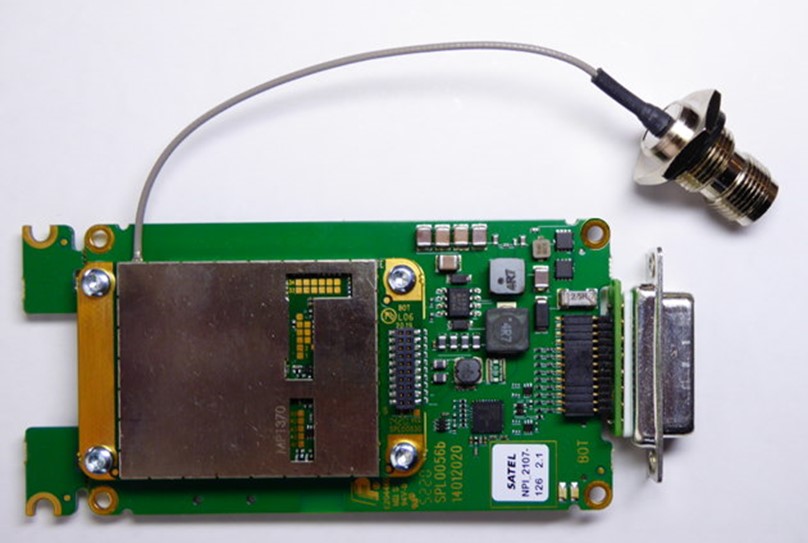

- SATEL-B2-TR4+, MP2 with AES128 encryption support, horizontal 26-pin connector + D15 adapter (YR7470)
- SATEL-B2-TR4+, MP2 without encryption support, horizontal 26-pin connector + D15 adapter (YR7475)
- SATEL-B2-TR4+, MP3 with AES128 encryption support, vertical 26-pin connector (YR7470)
- SATEL-B2-TR4+, MP3 without encryption support, vertical 26-pin connector (YR7475)
SATEL-EASy+ offers a modern solution for various long-range applications.
SATEL-TR49 is a small dual band and multimode transceiver.
A multifrequency and multimode transceiver with three frequency bands
| Frequency | 403…473 MHz |
| Tuning range | 70 MHz |
| Channel width | 12.5 kHz / 20 kHz/ 25 kHz (software selectable) |
| Encryption support | AES128 as default / AES256 as an order option |
| Modulation | 4FSK, 8FSK, 16FSK, GMSK *) |
| Power consumption, typical | TX 4.8 W @1 W / RX 0.89 W |
| Carrier power | 0.01, 0.02, 0.05, 0.1, 0.2, 0.5, 1 W programmable |
| Size / Weight | 57 x 36 x 6.9 mm / 20 g |
